Thermal Scope

Q Series

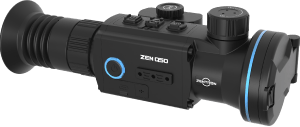

Dedicated thermal scopes with compact magnesium housings, on-device media playback and multiple detector and lens configurations. Each model includes an integrated laser rangefinder

Q50RQ635RQ35R

Where to buy Specifications

Q50R640 × 512Sensor resolution

Q50R≤18 mKThermal sensitivity · NETD

Q50R2 600 mDetection range

Q50RIP67Protection rating

Highlight features

Lightweight
2600m detection range · 50mm models
Digital compass
Auto screen off
IP67 protection

Excellent imaging quality

A high-performance, high-sensitivity thermal detector captures minute temperature changes, producing detailed images that faithfully reproduce complex hunting scenes.

Q50R · Q635R · Q35R

Compact & lightweight

Magnesium housings keep the Q Series compact. Q50R weighs 473.7 g (16.71 oz); Q635R and Q35R each weigh 444.8 g (15.69 oz).

Extra-long battery life

Two 18350 batteries deliver up to 6 hours of continuous operation on Q50R and Q635R, or 7 hours on Q35R. Each unit comes with four rechargeable batteries and a charger.

Media library

View, organize and manage images and videos directly on the device, making it easy to select, share and analyze recordings in the field.

Silent operation buttons

Designed for discreet hunting and tactical use, the buttons minimize sound to avoid alerting game or disturbing the environment.

Pre-record

Connect to the ZEN LINK app to automatically transfer videos captured before and after the shot to your phone.

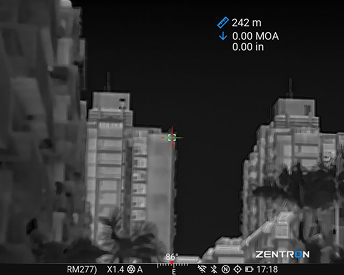

Ranging and app-configured ballistics

Check distance with the integrated laser rangefinder. Configure your ballistic profile in the ZENLINK app and use the saved parameters with range data for ballistic calculation. Select the correct profile and verify your setup before use.

Available only on devices equipped with a laser rangefinder (LRF).

Specifications

Compare all models

Series	Q50R	Q635R	Q35R
Detector type	Uncooled VOx
Sensor resolution	640 × 512		384 × 288
Pixel pitch	12 μm
Frame rate	50 Hz
Spectral range	8–14 μm
Thermal sensitivity · NETD	≤18 mK	≤20 mK
Optics
Objective lens	50 mm f1.0	35 mm f1.0
Field of view (H × V)	8.7°(H) × 7°(V)	12.5°(H) × 10°(V)	7.5°(H) × 5.6°(V)
Minimum focus distance	8 m	5 m
Detection range	2 600 m	1 800 m
Optical magnification	3.2×	2.3×	3×
Laser rangefinder
Laser class	Class 1
Wavelength	905 nm
Maximum measuring range	2 000 m	Day: 1 100 m Night: 1 500 m
Measurement accuracy (m)	≤±0.5 m (D ≤ 80 m) ±1 m (D ≤ 1 000 m) ≤±(0.2 + 0.0015 × D) m (D > 1 000 m) D = measured distance (m)	≤±1 m (≤300 m) ≤±2 m (>300 m)
Minimum measuring range	5 m
Display
Display type	OLED
Display resolution	1920 × 1080
Functions & connectivity
Magnification range	3.2–25.6×	2.3–18.4×	3.0–24.0×
Colour palettes	White, black, white highlight, cold green, green white…
Reticle types	8
Reticle colours	6: 5 fixed, 1 automatic
Wi-Fi, Bluetooth & microphone	Supported
Internal storage	64 GB	32 GB
Picture-in-picture	×2/×4/×8
Eye relief	52.1 mm 2.05 in
Dioptre adjustment	-5–+5
Power & connections
Battery configuration	2 × 18350
Maximum battery life	6 h		7 h
USB connection	USB-C
Dimensions (L × W × H)	157.5 × 64.8 × 73.9 mm 6.2 × 2.55 × 2.91 in	149.9 × 64.8 × 63.0 mm 5.9 × 2.55 × 2.48 in
Weight	473.7 g 16.71 oz	444.8 g 15.69 oz
Environmental performance
Housing material	Magnesium
Protection rating	IP67
Operating temperature	-20 °C–50 °C -4 °F–122 °F
Storage temperature	-40 °C–50 °C -40 °F–122 °F
Recoil resistance	1200 g/ms
