Multi-function Thermal Imaging Device

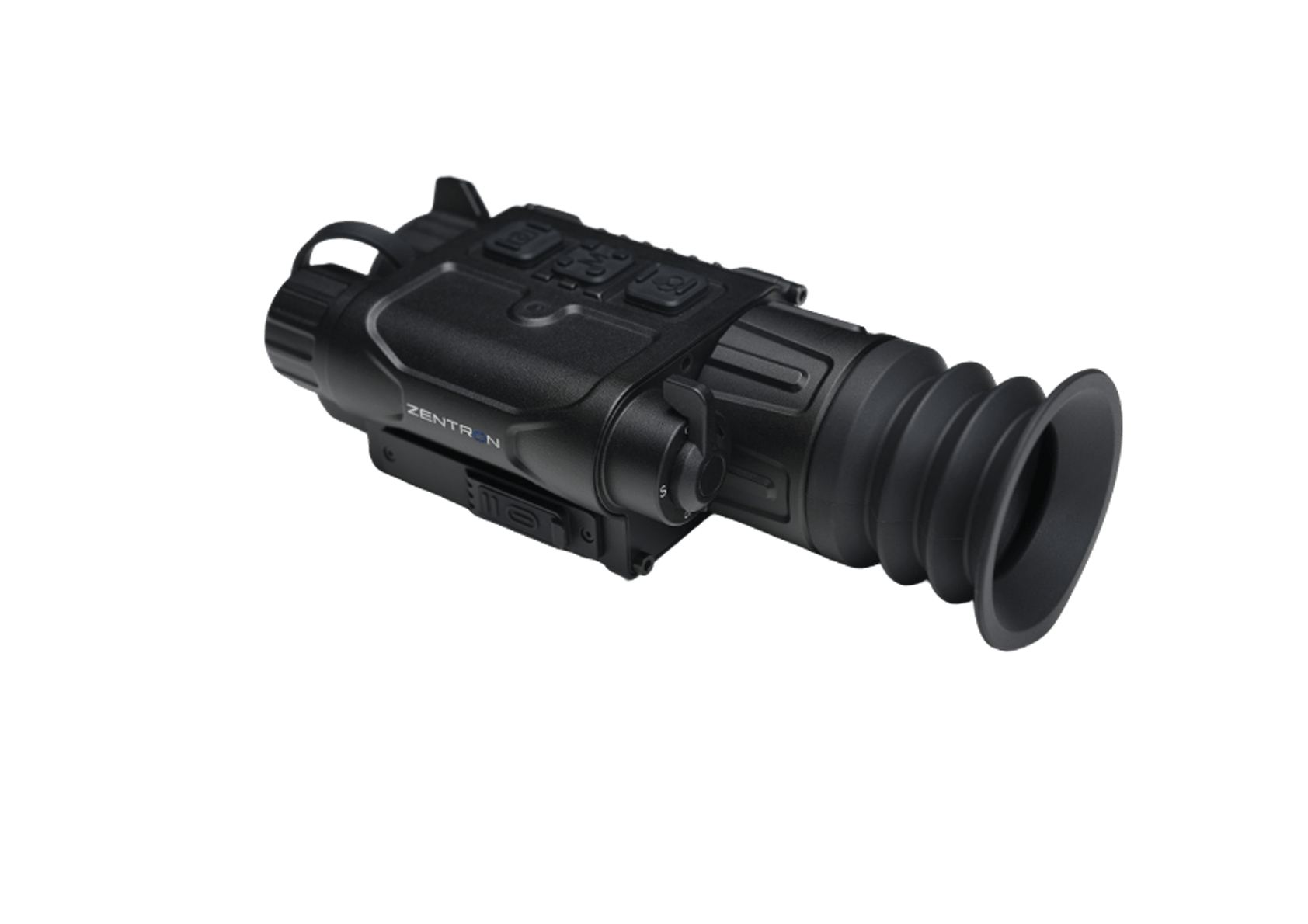

The CQ25 features a compact design that fits in your palm and is compatible with standard dovetail helmet mounts or rifle setups. It offers strong performance and high-definition image quality for an enhanced hunting experience.
Highlight Features
IP67
Protection level
Accelerometer &
digital compass
Smart
auto screen off
64GB
built-in memory
Operating mode

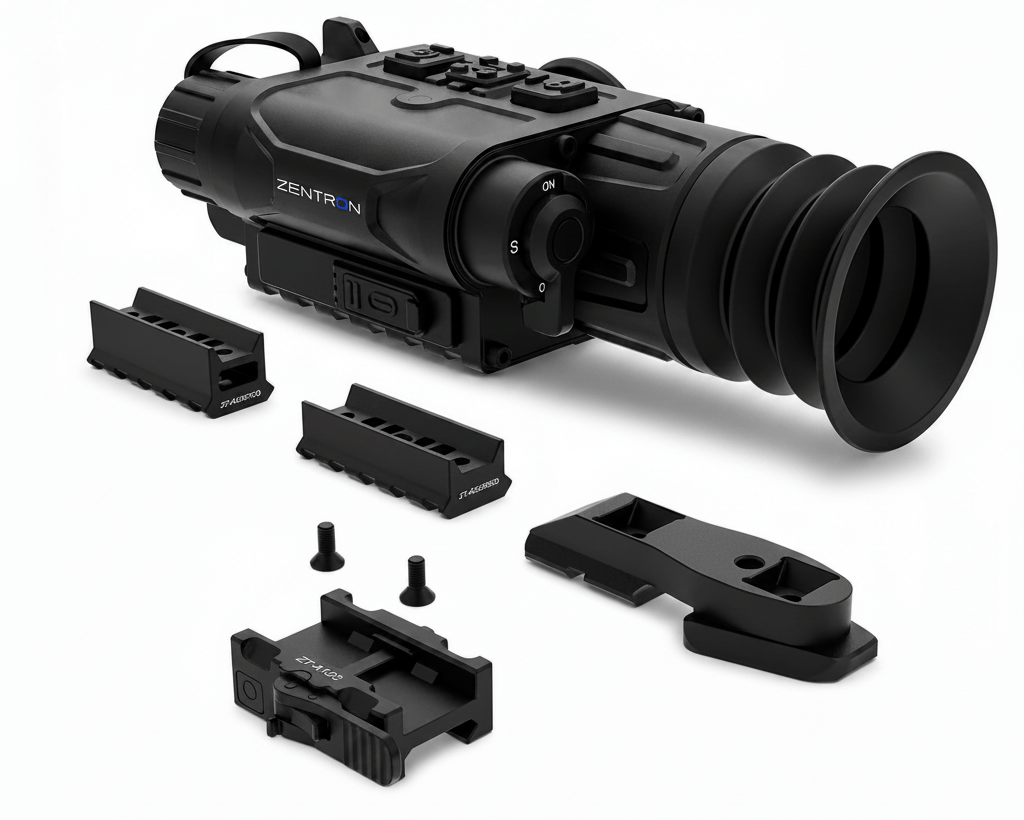

The CQ25 offers versatile functionality, serving as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on.
Handheld Mode
Switch to handheld mode to use the CQ25 as a portable thermal imager.
*Scope Mode

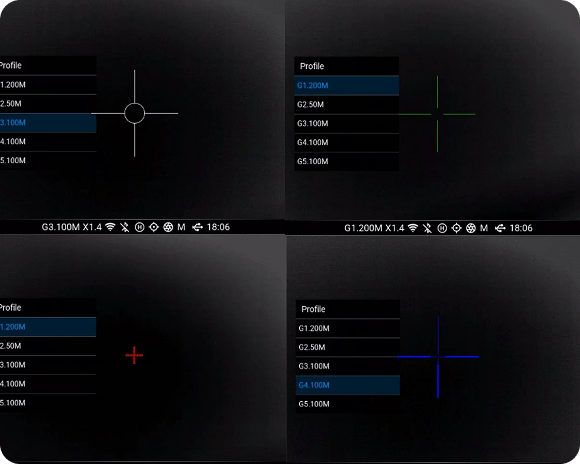

Activate scope mode to use the CQ25 as a thermal scope with a reticle displayed at the center of the screen.(Available only in countries and territories where permitted by law)

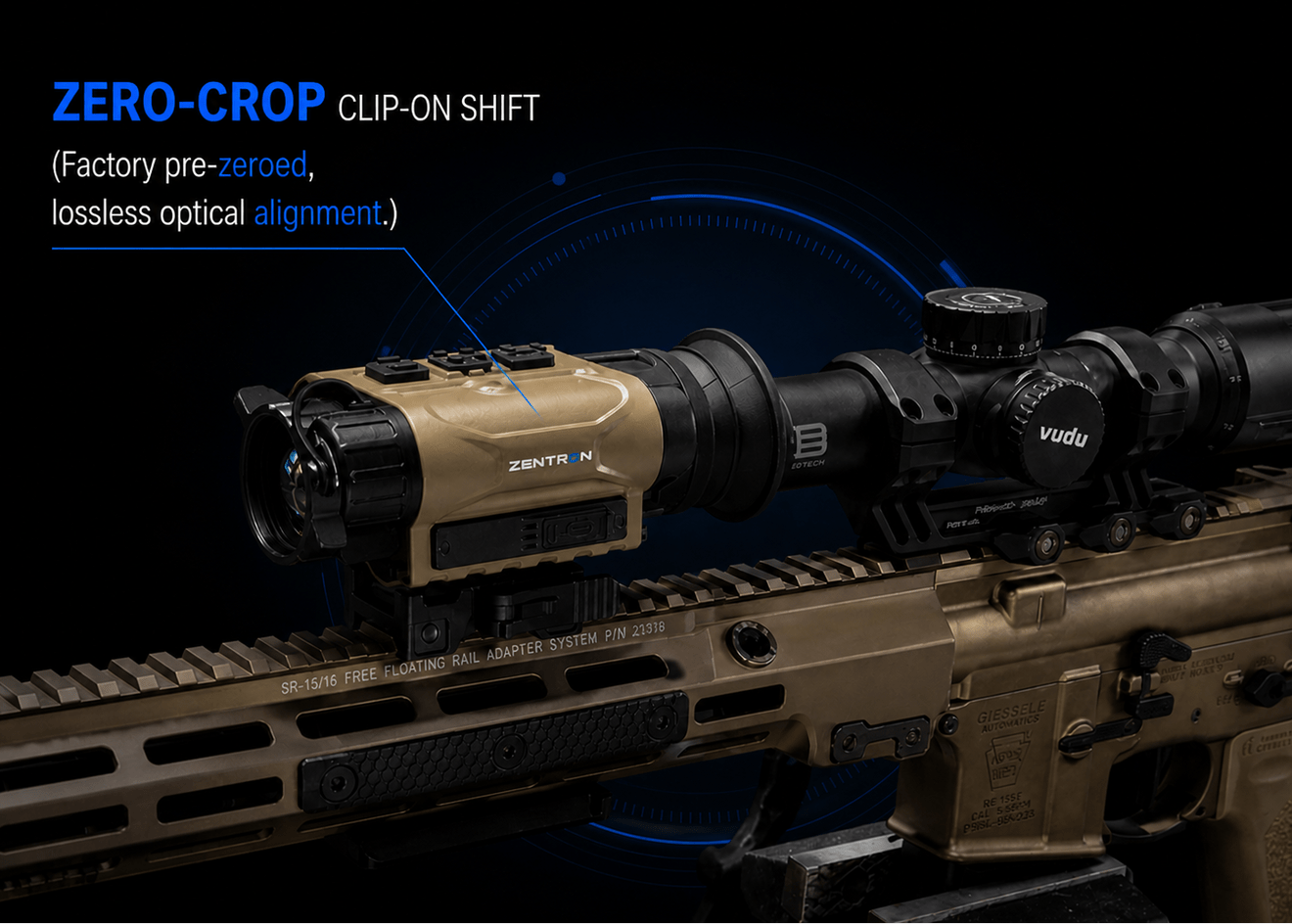

Clip-On Mode
In clip-on mode, mount the CQ25 in front of a rifle scope to transform it into a thermal clip-on device.
Helmet Mode
Install the CQ25 on a helmet for optimized display performance tailored to helmet-mounted use.
Menu Sorting
You can customize the menu order to suit your preferences, placing frequently used functions at the forefront for quicker access.
Scene Mode
Quickly switch between Scene modes by short-pressing the menu key. Each mode's parameters are fully editable, allowing you to customize the image display effect to suit your needs instantly.
Media library
Users are able to seamlessly view, organize, and manage images and videos directly on the device. Makeing it super easy to select, share, and analyze on the spot.
Extra-long battery life
Zentron products are powered by one 18650 battery, delivering up to 6 hours of continuous operation per set.

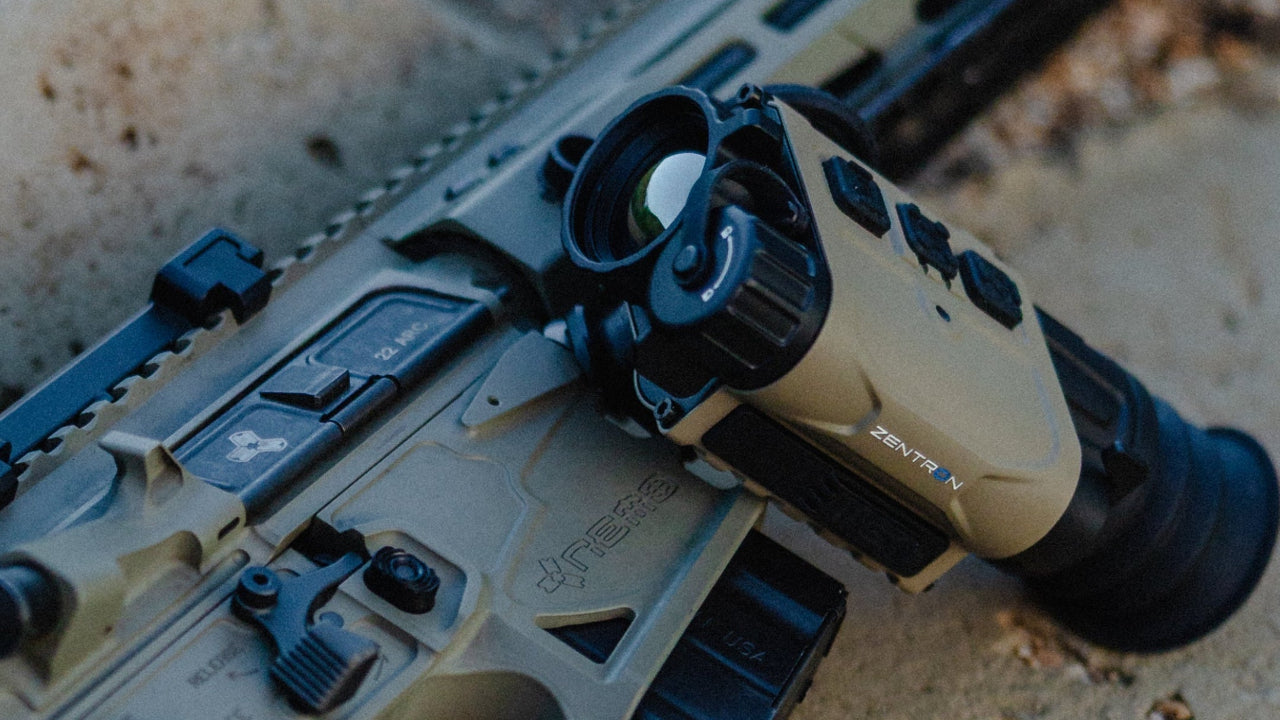

Compact & Lightweight
ZEN CQ25 is a lightweight and compact thermal imaging device. The weight of ZEN CQ25 is 365g.

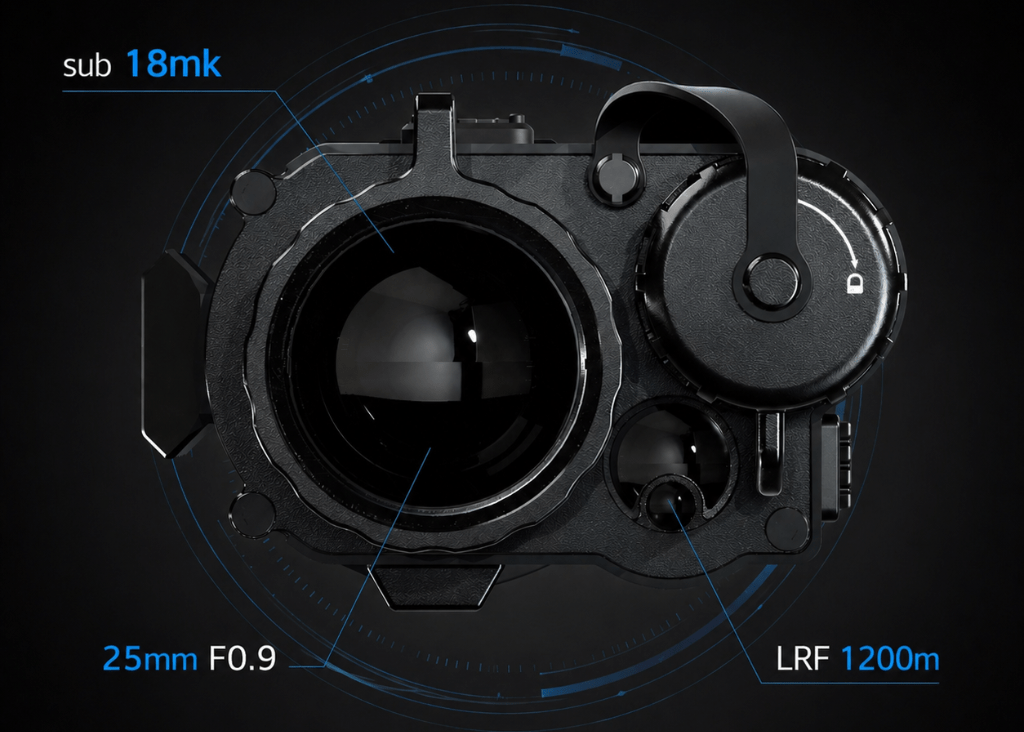

Excellent imaging quality
The CQ25 delivers exceptional clarity and detail, providing a visual experience that stands out in both low-light and challenging environments. Its advanced thermal detection and high-definition imaging ensure you never miss a moment, even in the most demanding conditions.

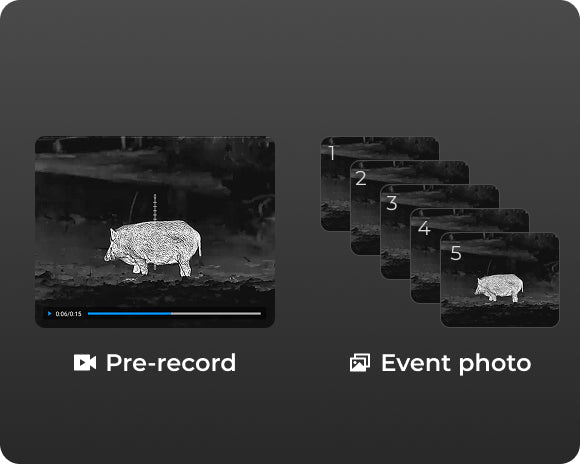

Pre-record
Connecting to the ZEN LINK APP allows thrilling videos captured before and after shooting are automatically transferred to phone.
Technical Specifications
- ZEN SeriesCQ25
- Detecor TypeVOx Uncooled
- Resolution640×512
- Pixel Size12μm
- Framerate50Hz
- Spectral range8~14um
- NETD≤20mK
- Optics
- Objective Lens25mm f1.0
- Field of View17.5°(H)×14°(V)
- Close-up range5 M
- Detection Range1200 M
- Optical magnificationMonocular mode: 1.7×
Scope mode: 1.4×
Helmet mode: 1.1×
Clip-on mode: 1× - Display Parameters

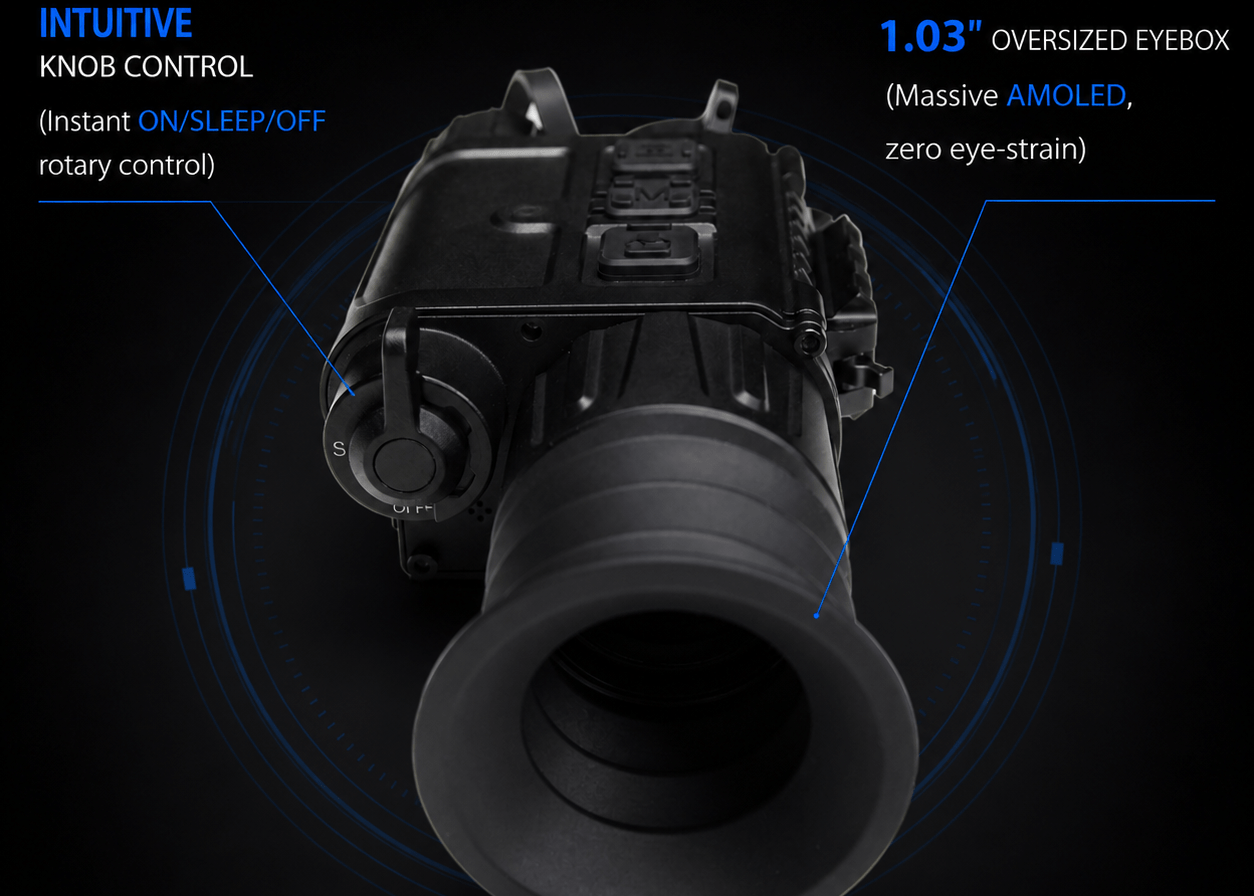

- Display TypeOLED
- Display Resolution1632 × 1280
- Functions
- E-zoomMonocular mode: 1.7~13.6×
Scope mode: 1.4~11.2×
Helmet mode: 1.1~8.8×
Clip-on mode: 1× - Start up timeLess than 5 seconds
- PalettesWhite hot/Black hot/Iron red/Tint...
- Wifi & Bluetooth & MicSupport
- SensorsBuilt-in accelerometer and digital compass
- Built-in memory64GB
- Electronics
- Battery1 × 18650
- Max. Battery Life6 hours
- USB InterfaceTYPE-C
- Physical
- Size161.5 × 75.5 × 51mm
- Weight365g
- Connection ThreadM45×0.75
- Environmental
- Housing MaterialMagnesium
- Protection LevelIP67
- Operation Temp-20℃~50℃
- Storage Temp-40℃~50℃
- Max. Recoil1000g/0.4ms

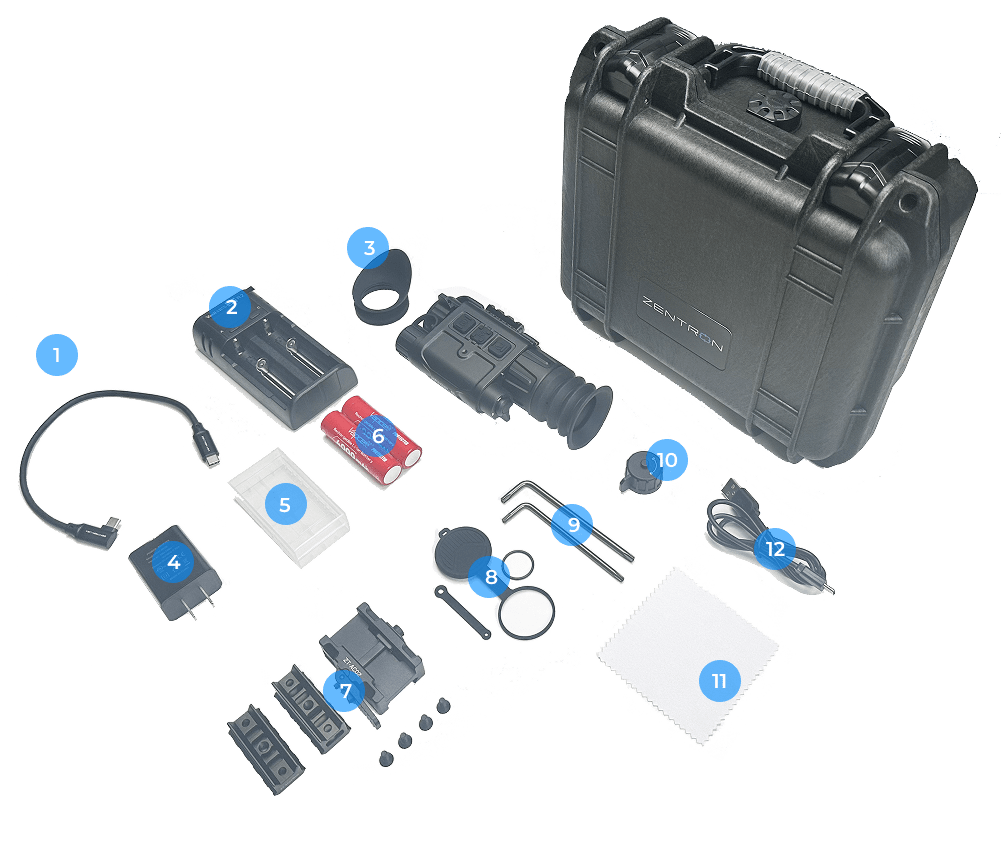

Accessories
1.USB cable for battery charger
2.Battery charger
3.Eye cup*2
4.Hardcase box
5.Charger head
6.Batteries
7.USB cable for data transfer
8.Battery cap
9.Wipe cloth
10.Carry bag
